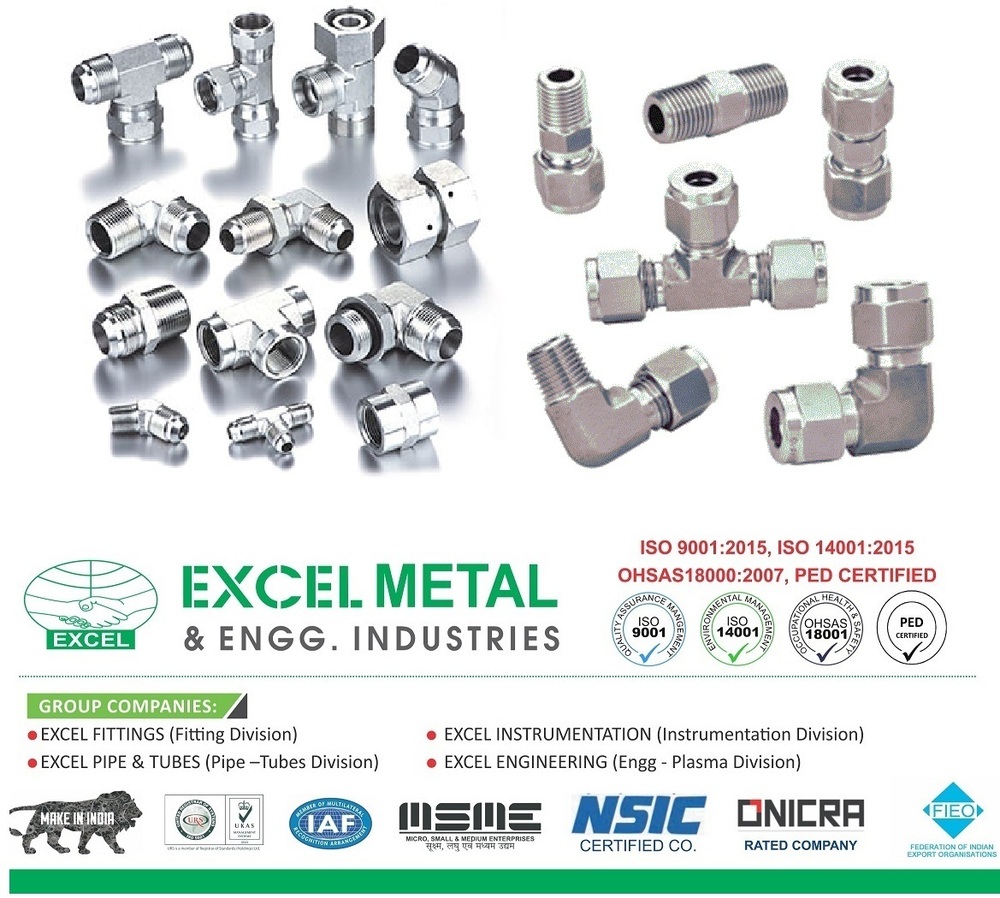

Voss Equivalent Fittings

Product Description

tube fittings are singleferrule compression fitting which provide leaktight and remakeable connectionsin process and analytical instrumentation control systems utilities and other applications




Specifications




MAWP 12000 psig

Temperature Range 325 to 1200F

Materials SS304SS 316 Alloy 400 C276 and brass Other materials are available

Sizes 116 to 6 in

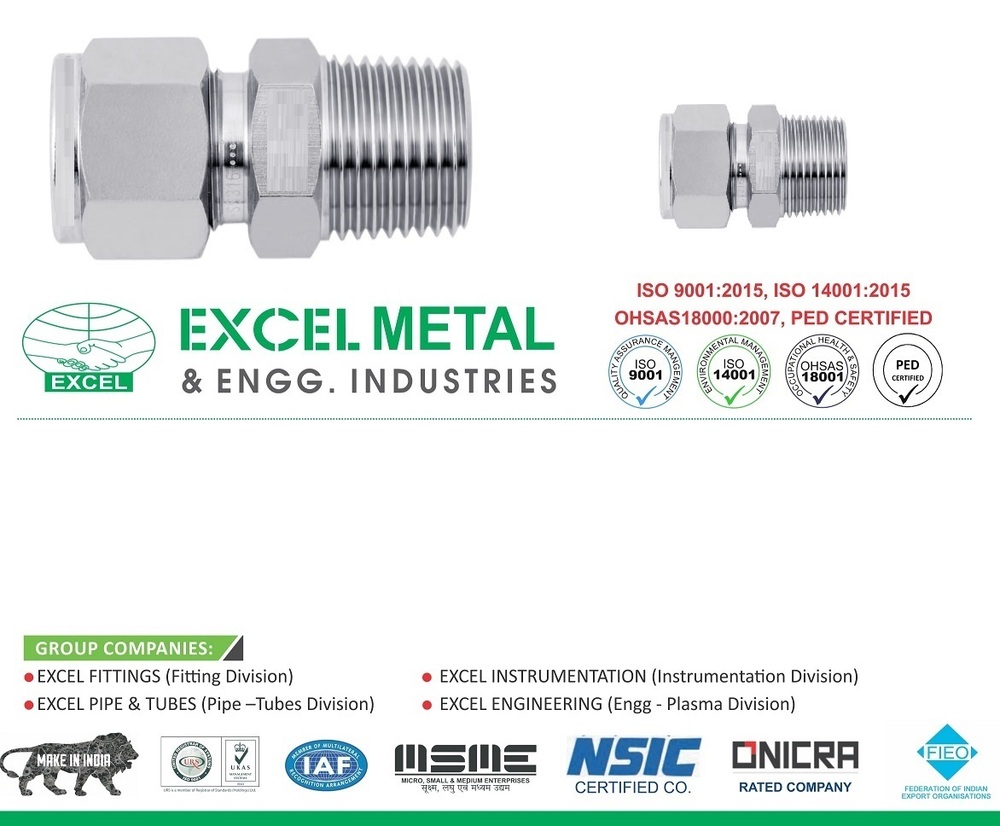

Adapters NPT ISOBSP SAEMS AN weld tube stub port connectors and ORFS

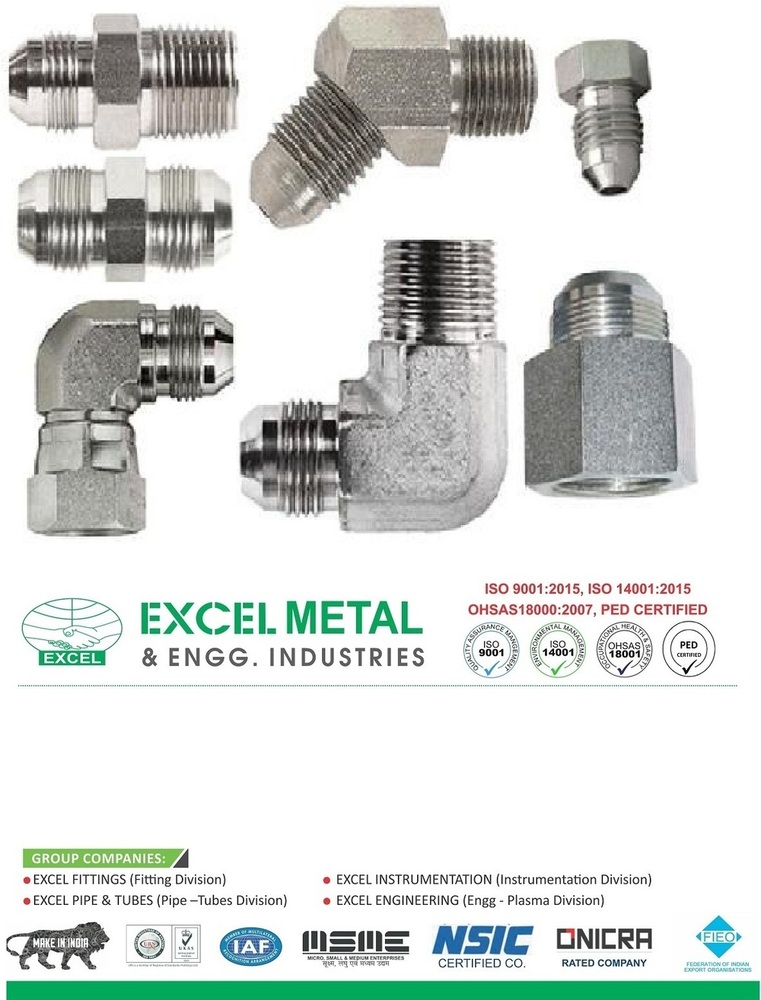

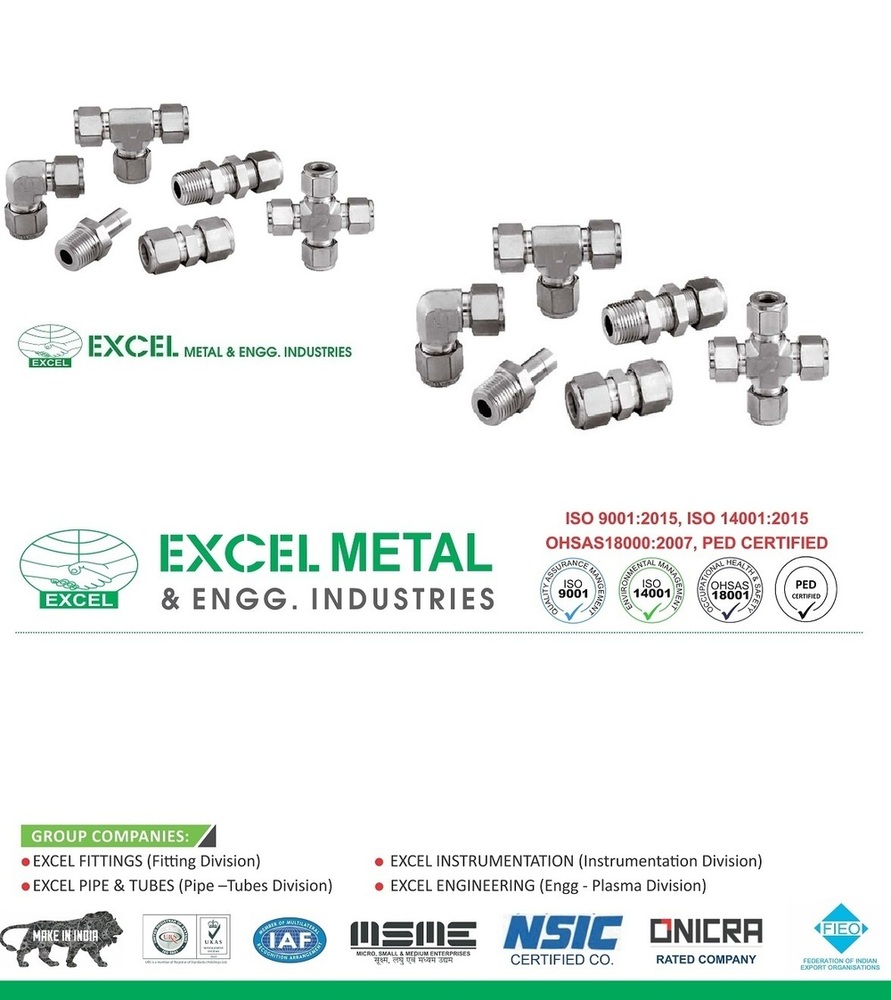

Shapes Straight elbows tees crosses caps plugs

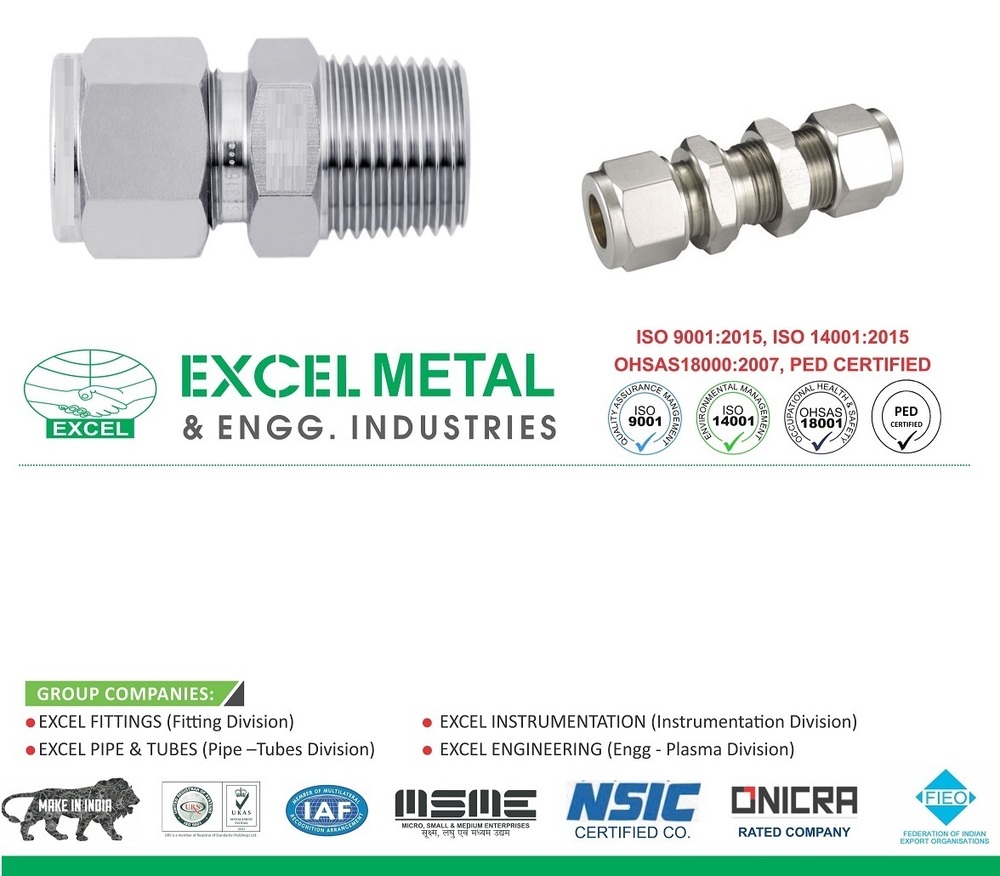

Special fittings Bulkhead and extended long bore through positionable calibration and dielectric fittings silver plated nut

Accessories Stop collars bulkhead locks nut and ferrule sets prewrapped thread tools and accessories

To provide a reliable leakproof connection in instrumentation and process tubing systems our tube fittings consist of three precisionmachined components body ferrule and nut The single ferrule design with the springlike action of the ferrule during makeup compensates for the variation in tubing materials hardness and thickness of the tube wall to provide leaktight connections in an extensive range of applications




Type Flare less Bite Type Single Ferrule




Standard DIN 2353  ISO 8434  1

Series LL Very Light L Light S Heavy

Size 4 mm to 42 mm 18 OD to 2 OD 18 NB to 2 NB

Pressure Ranging from 100 Bar to 630 Bar depending on type and size

Material Stainless Steel  Brass From extruded bar or forging
