Cupro Nickel Pipe Fittings

100 INR/Number

Get a Price/Quote

Product Details:

Sealing Type Metal to Metal/Compression (as per fitting type)
Flexibility Rigid
Tensile Strength Min. 245 MPa
Coating Type None or as specified
Tolerance 0.05 mm
Thread Type NPT / BSPT (where applicable)
Bend Radius As per fitting design
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Cupro Nickel Pipe Fittings Price And Quantity

Price Range 99.00 - 500.00 INR/Number
Price 100 INR/Number
Minimum Order Quantity 10 Number

Manufacturing Process Hot Formed / Cold Worked
Conductivity 6-34% IACS (depending on grade)
Compliance RoHS, PED 2014/68/EU
Packaging Wooden Boxes / Export Cartons
End Type Beveled, Plain, or Threaded Ends
Density 8.9 g/cm³
Hardness 50-130 HB
Leak Tightness 100% Hydro Tested
Elongation Minimum 30%
Corrosion Resistance Excellent, especially in seawater and aggressive environments
Impact Strength High, excellent for cryogenic applications
Magnetic Permeability Non-magnetic

Cupro Nickel Pipe Fittings Product Specifications

Material Grade Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500)
Bend Radius As per fitting design
Standard ASTM B466, B467 / DIN 86019 / EN 1254-1
Connection Type Welded/Threaded/Soldered
Shape Elbow, Tee, Reducer, Coupling (as per image)
Section Shape Round
Surface Treatment Polished / Pickled
Usage Joining pipelines for various fluid applications
Yield Strength Min. 105 MPa
Outer Diameter 1/2 to 14 (12.7 mm to 355.6 mm)
Length Custom / As per order
Diameter 13 mm to 355 mm
Temperature Range -196C to +400C
Color Metallic Copper-Nickel
Sealing Type Metal to Metal/Compression (as per fitting type)
Product Type Pipe Fittings
Thickness 1.5 mm to 10 mm
Material Cupro Nickel (Copper-Nickel Alloy)
Flexibility Rigid
Connection Butt Weld / Socket Weld / Threaded
Coating Type None or as specified
Tensile Strength Min. 245 MPa
Rated Pressure up to 40 Bar (580 psi)
Application Marine, Shipbuilding, Power Plant, Desalination, Chemical Processing
Thread Type NPT / BSPT (where applicable)
Tolerance 0.05 mm

Manufacturing Process Hot Formed / Cold Worked
Conductivity 6-34% IACS (depending on grade)
Compliance RoHS, PED 2014/68/EU
Packaging Wooden Boxes / Export Cartons
End Type Beveled, Plain, or Threaded Ends
Density 8.9 g/cm³
Hardness 50-130 HB
Leak Tightness 100% Hydro Tested
Elongation Minimum 30%
Corrosion Resistance Excellent, especially in seawater and aggressive environments
Impact Strength High, excellent for cryogenic applications
Magnetic Permeability Non-magnetic

Product Description

we are offering a quality range of Copper Nickel Pipe Fittings / Copper Nickel Pipes. Manufactured at the vendors' end using supreme quality material and sophisticated machines, these fittings are widely used in different industry applications. Clients can avail these fittings from us in grades like UNS NO. C 70600 (CU -NI- 90/10) and C 71500 (CU -NI- 70/30). We ensure that all these pipe fittings are delivered at the customers' end within the postulated time.

Copper Nickel Buttweld Pipe Fittings

Range : 1/2" NB TO 06"NB IN SCH: 10s, 40s, 80s.

Type : SEAMLESS / WELDED/ FABRICATED

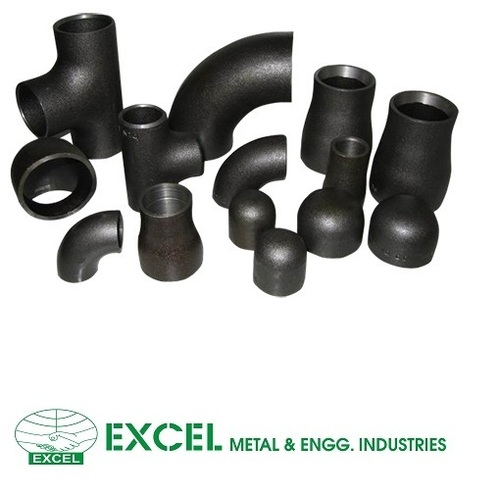

Form

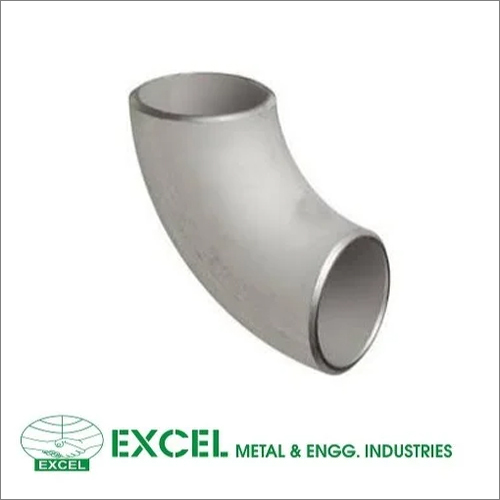

Elbows in Long & Short Radius in 45 deg, 90 deg, 180 deg.
Equal, Unequal Tee
Bend
Eccentric Reducer & Concentric Reducer.
Caps & Crosses.
Long & Short Stub End.
Swage Nipple & Barrel Nipple.

Outstanding Corrosion Resistance

Our Cupro Nickel Pipe Fittings provide superior resistance to corrosion, particularly in seawater and aggressive chemical environments. This feature makes them highly suitable for marine and shipbuilding applications, as well as desalination and power plant projects. They maintain integrity and performance even under high salinity and harsh conditions.

Versatile Application and Customization

Designed for flexibility, these fittings can be supplied in various shapes, sizes, and end types (beveled, plain, or threaded). With options for butt weld, socket weld, or threaded connections, they can be tailored for pipelines with diameters from 13 mm to 355 mm, and thickness ranging from 1.5 mm to 10 mm. Custom lengths and surface finishes are available to suit project needs.

Stringent Quality Standards and Compliance

Every fitting is manufactured in compliance with international standards such as ASTM B466/B467, EN 1254-1, and DIN 86019. Each piece undergoes 100% hydrostatic testing to ensure leak-tightness and is delivered with precise tolerances (0.05 mm). The fittings meet RoHS and PED 2014/68/EU directives, supporting safe and sustainable installations.

FAQ's of Cupro Nickel Pipe Fittings:

Q: How are Cupro Nickel Pipe Fittings manufactured?

A: These fittings are produced using hot forming or cold working processes to achieve the required shape and mechanical properties. They are finished with either a polished or pickled surface, and each fitting is hydro-tested to ensure leak tightness before packaging.

Q: What makes Cupro Nickel Pipe Fittings ideal for marine and chemical environments?

A: The fittings offer excellent corrosion resistance-especially in seawater and aggressive chemicals-due to their copper-nickel alloy composition. This makes them reliable for marine, shipbuilding, desalination, and chemical processing environments where durability and longevity are critical.

Q: When should Cupro Nickel Pipe Fittings be used over other materials?

A: Choose Cupro Nickel fittings when you need non-magnetic, corrosion-resistant, and mechanically robust connections, particularly in cryogenic, marine, or aggressive chemical environments. They are beneficial where long-term service and reliability are imperative.

Q: Where can these pipe fittings be installed?

A: These fittings are versatile for use in marine vessels, power plants, desalinization units, and chemical industries. They are also suitable for joining pipelines carrying various fluids under high pressure and varied temperatures, ranging from -196C up to +400C.

Q: What are the typical end connections available for these fittings?

A: Depending on the installation requirements, Cupro Nickel Pipe Fittings are available with beveled, plain, or threaded ends. Connection types include butt weld, socket weld, threaded (NPT/BSPT), or soldered joints, ensuring compatibility with diverse piping systems.

Q: How do these fittings benefit pipeline systems?

A: They provide reliable, leak-tight joints that can withstand high pressures (up to 40 bar), cryogenic temperatures, and aggressive environments. Their high impact strength, flexibility in design, and standardized manufacturing ensure long-lasting, maintenance-free operation in critical pipeline systems.
